ZOBO Heater

Torpedo Heaters

Compare the listed fields for ZB-K350, PLUS K180, ZB-K175, ZB-H100, ZB-G35T, ZB-G60A. Output, supply, fuel and heating volume / area entries appear below; missing fields are On request.

Heat output12–100 kW5 of 6 models list this
Heat output40,000–60,000 BTU1 of 6 models list this
Heating volume234–2,000 m³5 of 6 models list this
FuelDiesel / kerosene · Propane / LPG
Models6
Diesel kerosene heater pictured in the ZOBO product range

Torpedo Heaters models

Spec comparison

SpecZB-K350PLUS K180ZB-K175ZB-H100ZB-G35TZB-G60A
Power supply220V / 50Hz110V / 60Hz, 220V / 50Hz110V / 60Hz, 220V / 50Hz110V / 60Hz, 220V / 50Hz220V / 50Hz110V / 60Hz
Heat output100 kW51 kW51 kW (175,000 BTU)30 kW (100,000 BTU)12–30 kW (adjustable)40,000–60,000 BTU
FuelKerosene, dieselKerosene, dieselKerosene, dieselKerosene, dieselLPG / propaneLPG / propane
Fuel tank / cylinder70 L50 L50 L50 LOn requestOn request
Fuel consumption9.8 L/h4.8 L/h4.8 L/h2.9 L/h0.86–2.16 kg/h0.83–1.25 kg/h
Heating volume / area2,000 m³1,060 m³1,020 m³480 m³On request234–352 m³
AirflowOn requestOn requestOn requestOn request440–600 m³/h500 m³/h
Regulator / manifold pressureOn requestOn requestOn requestOn request700 mbar regulator output11.0" W.C. regulator output
Ignition / controlContinuous spark ignition; thermostatContinuous spark ignition; thermostatContinuous spark ignition; thermostatContinuous spark ignition; thermostatOn requestElectronic ignition; thermostat
Product size1310 × 500 × 750 mm1130 × 560 × 735 mm1060 × 540 × 575 mm1100 × 550 × 600 mm480 × 225 × 343 mm486 × 198 × 335 mm
Net / gross weight52 / 56.5 kg25.6 / 28 kg22.3 / 25.8 kg30.5 / 33.6 kg5.9 / 6.8 kg5.6 / 6.6 kg
Package size1295 × 470 × 690 mm1075 × 480 × 545 mm1065 × 455 × 500 mm1065 × 455 × 500 mm530 × 280 × 390 mm530 × 245 × 370 mm
Container loading (20' / 40' / 40'HQ)67 / 138 / 162 pcs100 / 200 / 234 pcs108 / 220 / 275 pcs108 / 220 / 275 pcs490 / 950 / 1150 pcs570 / 1180 / 1440 pcs

Read the listed model fields

ZB-K350 has a listed heat output of 100 kW. Fuel: Kerosene, diesel. Power supply: 220V / 50Hz. Fuel tank / cylinder: 70 L. Heating volume: 2,000 m³. Fuel consumption: 9.8 L/h.

PLUS K180 has a listed heat output of 51 kW. Fuel: Kerosene, diesel. Power supply: 110V / 60Hz, 220V / 50Hz. Fuel tank / cylinder: 50 L. Heating volume: 1,060 m³. Fuel consumption: 4.8 L/h.

ZB-K175 has a listed heat output of 51 kW (175,000 BTU). Fuel: Kerosene, diesel. Power supply: 110V / 60Hz, 220V / 50Hz. Fuel tank / cylinder: 50 L. Heating volume: 1,020 m³. Fuel consumption: 4.8 L/h.

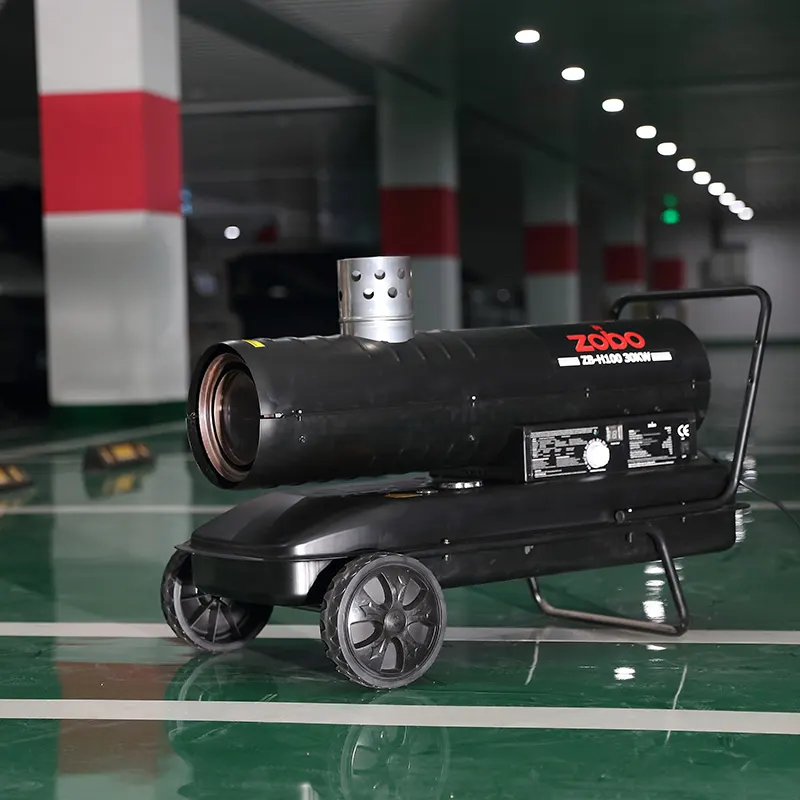

ZB-H100 has a listed heat output of 30 kW (100,000 BTU). Fuel: Kerosene, diesel. Power supply: 110V / 60Hz, 220V / 50Hz. Fuel tank / cylinder: 50 L. Heating volume: 480 m³. Fuel consumption: 2.9 L/h.

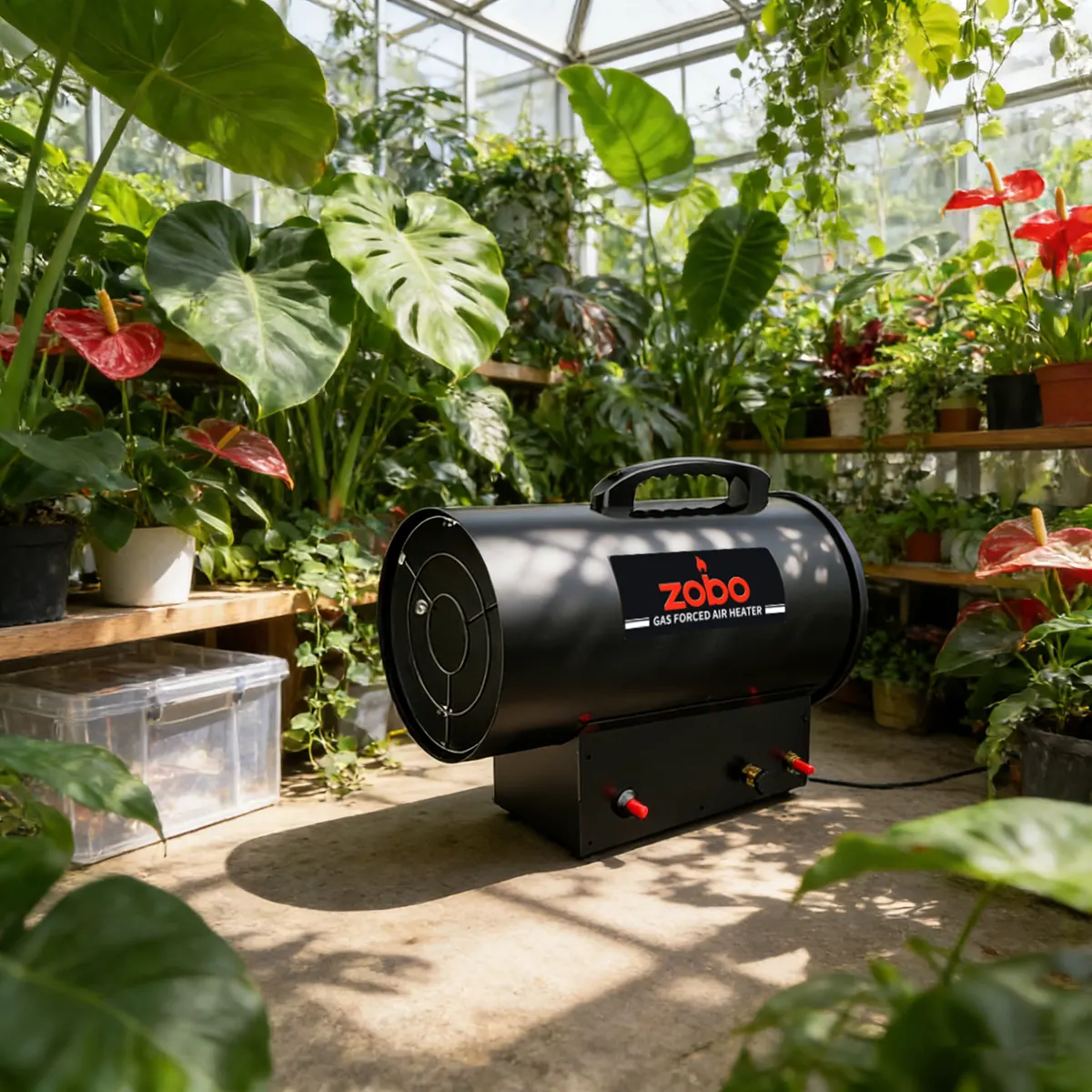

ZB-G35T has a listed heat output of 12–30 kW (adjustable). Fuel: LPG / propane. Power supply: 220V / 50Hz. Fuel consumption: 0.86–2.16 kg/h.

ZB-G60A has a listed heat output of 40,000–60,000 BTU. Fuel: LPG / propane. Power supply: 110V / 60Hz. Heating volume: 234–352 m³. Fuel consumption: 0.83–1.25 kg/h.

Questions before requesting a quotation

What rating conditions, permitted applications and installation instructions accompany the proposed model? Which listed dimensions, controls, packaging and loading entries should appear on the quotation?

For the fields or questions covered on Salamander vs Torpedo Heater: What Is the Difference?, keep the exact model code in your inquiry and request any missing details.

For the fields or questions covered on Diesel Kerosene Heaters, keep the exact model code in your inquiry and request any missing details.

For the fields or questions covered on Propane Forced Air Heaters, keep the exact model code in your inquiry and request any missing details.

For the fields or questions covered on Torpedo Heater Safety: Ventilation, Placement and Refueling, keep the exact model code in your inquiry and request any missing details.
